| No. | Data Type | Unit | Related Instruments |
| 1 | Time | sec. | System time ( D t = 0.02 sec ) |

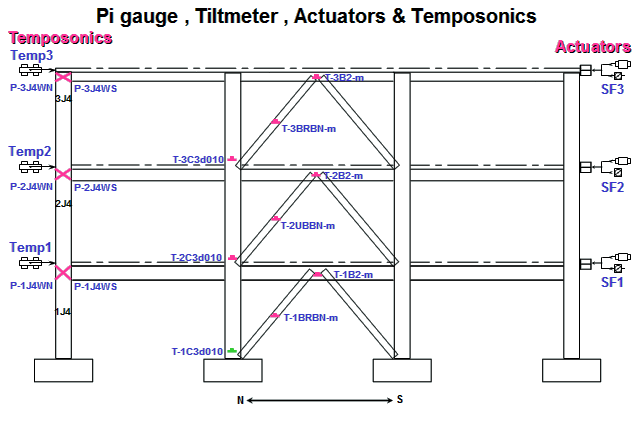

| 2 | 3F (roof) Displacement | mm | Temp3 |
| 3 | 2F Displacement | mm | Temp2 |
| 4 | 1F Displacement | mm | Temp1 |
| 5 | 3F Story Shear | kN | SF3 |
| 6 | 2F Story Shear | kN | SF3 , SF2 |
| 7 | 1F (base) Story Shear | kN | SF3 , SF2 , SF1 |
| 8 | 3F Story Drift | * | Temp3 , Temp2 |
| 9 | 2F Story Drift | * | Temp2 , Temp1 |
| 10 | 1F Story Drift | * | Temp1 |

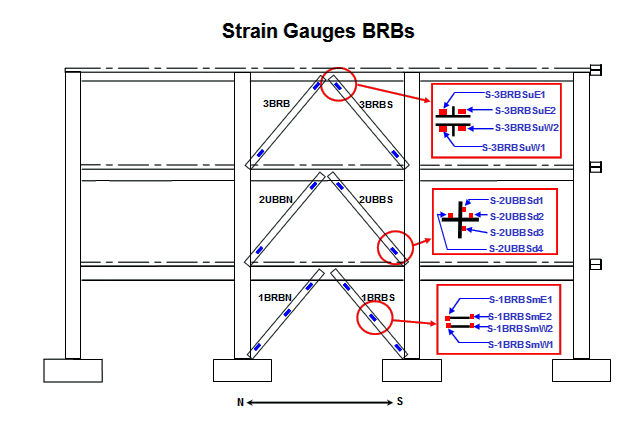

| 11 | 1F BRB Core strain (South) | * | S-1BRBSmE2 , S-1BRBSmE1 , S-1BRBSmW1 , S-1BRBSmW2 |

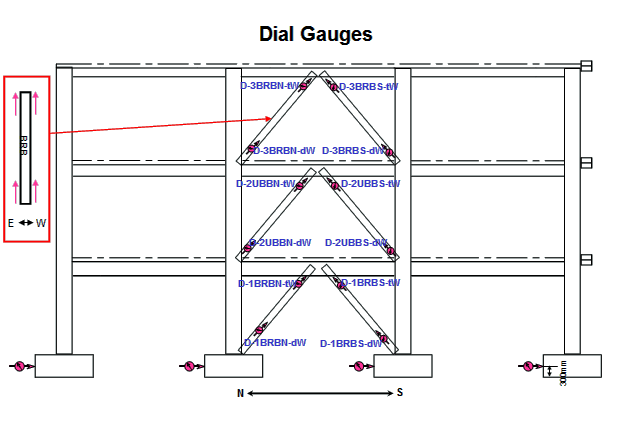

| 12 | 1F BRB average strain (South) | * | D-1BRBS-tW , D-1BRBS-tE , D-1BRBS-dW , D-1BRBS-dE |
| 13 | 1F BRB axial force (South) | kN | S-1BRBSdE1 , S-1BRBSdE2 |
| 14 | 1F BRB brace shear | kN | S-1BRBSdE1 , S-1BRBSdE2 , S-1BRBNdE1 , S-1BRBNdE2 |
| 15 | 1F unbalance load (vertical) | kN | S-1BRBSdE1 , S-1BRBSdE2 , S-1BRBNdE1 , S-1BRBNdE2 |
| 16 | 1F brace bottom end rotation less column rotation | degree | T-1C3d010 , T-1BRBN-m |
| 17 | 1F brace top end rotation less beam rotation | degree | T-1B2-m , T-1BRBN-m |
| 18 | 2F BRB average strain (South) | * | D-2UBBS-tW , D-2UBBS-tE , D-2UBBS-dW , D-2UBBS-dE |
| 19 | 2F BRB axial force (South) | kN | S-2UBBSd4 , S-2UBBSd2 |
| 20 | 2F BRB brace shear | kN | S-2UBBSd4 , S-2UBBSd2 , S-2UBBNd2 , S-2UBBNd4 |
| 21 | 2F unbalance load (vertical) | kN | S-2UBBSd4 , S-2UBBSd2 , S-2UBBNd2 , S-2UBBNd4 |
| 22 | 2F brace bottom end rotation less column rotation | degree | T-2UBBN-m , T-2B2-m |
| 23 | 2F brace top end rotation less beam rotation | degree | T-2UBBN-m , T-2C3d010 |
| 24 | 3F BRB average strain (South) | * | D-3BRBS-tW , D-3BRBS-tE , D-3BRBS-dW , D-3BRBS-dE |
| 25 | 3F BRB axial force (South) | kN | S-3BRBSdE1 , S-3BRBSdE2 |
| 26 | 3F BRB brace shear | kN | S-3BRBSdE1 , S-3BRBSdE2 , S-3BRBNdE2 , S-3BRBNdE1 |
| 27 | 3F unbalance load (vertical) | kN | S-3BRBSdE1 , S-3BRBSdE2 , S-3BRBNdE2 , S-3BRBNdE1 |
| 28 | 3F brace bottom end rotation less column rotation | degree | T-3BRBN-m , T-3C3d010 |
| 29 | 3F brace top end rotation less beam rotation | degree | T-3BRBN-m , T-3B2-m |
| 30 | 1F BRB bolt force Long (inner) | kN | B-1BRBS2 |
| 31 | 1F BRB bolt force Short (inner) | kN | B-1BRBS2s |
| 32 | 1F BRB bolt force Long (outer) | kN | B-1BRBS1 |
| 33 | 1F BRB bolt force Short (outer) | kN | B-1BRBS1s |
| 34 | 3F BRB bolt force (outer) | kN | B-3BRBS4 |
| 35 | 3F BRB bolt force (inner) | kN | B-3BRBS3 |
| 36 | 1F 1J4 joint deformation | radian | P-1J4WN , P-1J4WS |
| 37 | 2F 2J4 joint deformation | radian | P-2J4WN , P-2J4WS |
| 38 | 3F 3J4 joint deformation | radian | P-3J4WN , P-3J4WS |
